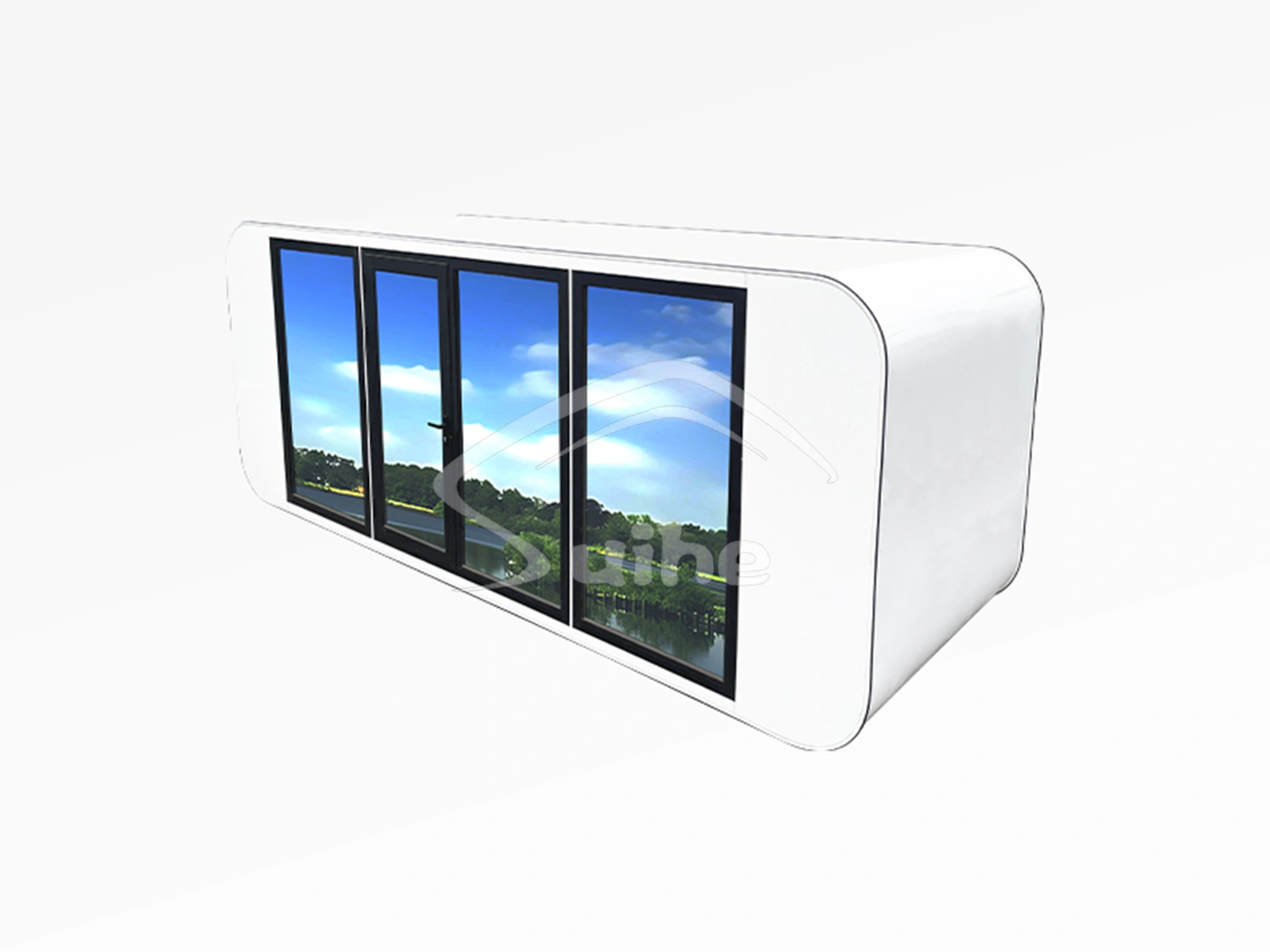

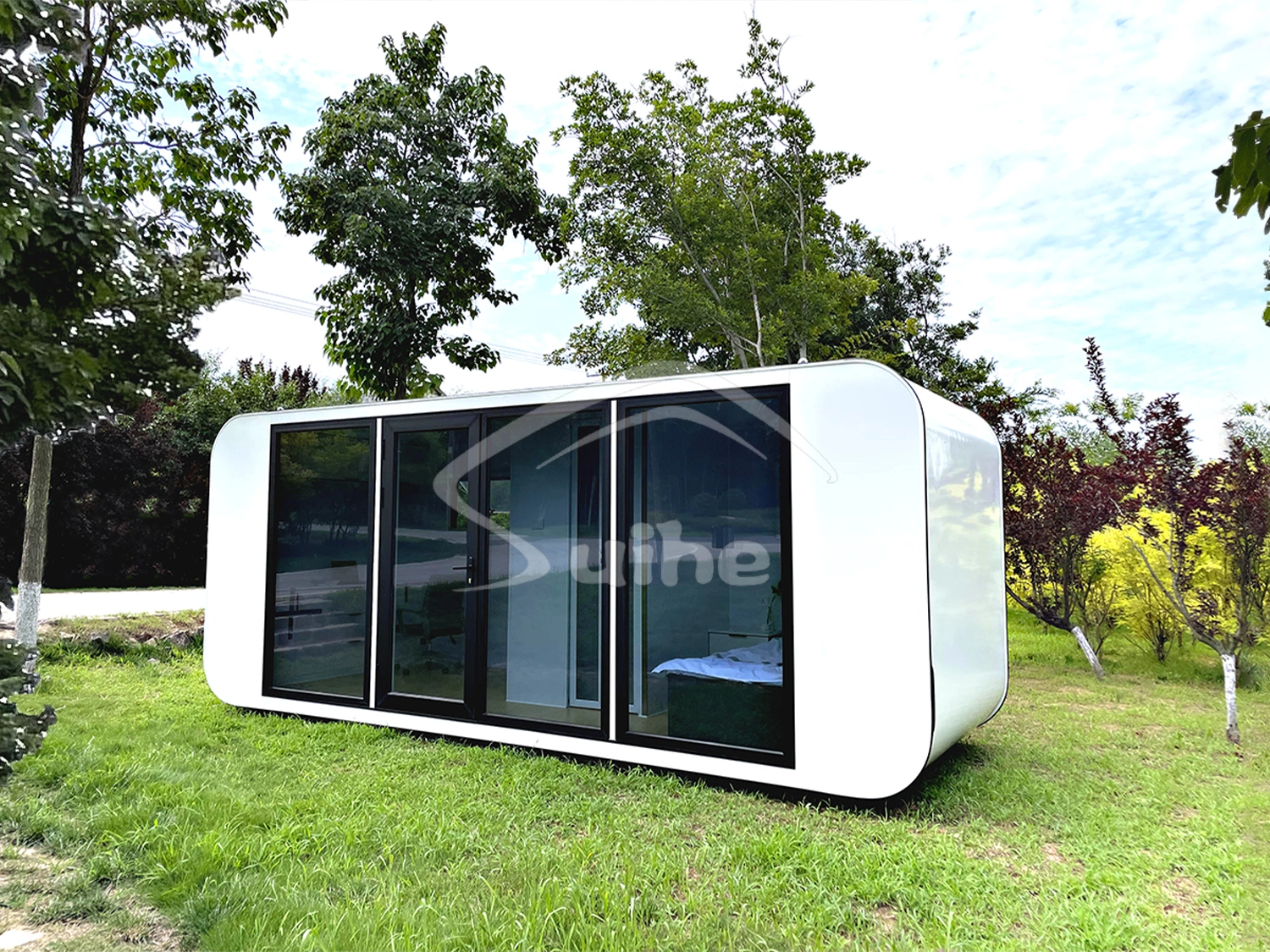

Prefab Tiny Cube 20FT With Washroom-B

Durable Aluminum-Plastic Exterior: Crafted from high-quality aluminum-plastic panels, our cabin is built to withstand the elements, ensuring lasting beauty and functionality.
Eco-Friendly Interiors: Step into a healthy living space with eco-conscious materials like wood plastic gusset board and EO-grade ecological board, prioritizing your well-being and the environment.
Smart Storage Solutions: Stay organized with our thoughtfully designed cabinets, offering plenty of space to keep your essentials neatly arranged.
Flexible Ventilation: Control airflow with side push-out windows, allowing you to create a comfortable environment in any weather.
Customizable Lighting: Set the mood with our top spotlight, offering adjustable illumination to create the perfect ambiance for any occasion.

  • Modern Design

  • High Quality

  • Fully Finished-Prefab

  • Easy Installation

  • Removable

  • Heat Insulation

  • Soundproof

  • Shock Resistance

  • Durability

  • Comfortable

Specification

CategoryStandard
Item6 m type B Prefab Tiny Cub
DimensionsL5900 mm * W2205 mm * H2350 mm
Packing Quantity Per Container2 sets
Overall Weight1700 kg
Main Structure
Main bodyQ235 Steel frame / Glass Steel Plate Roof / Aluminum-Plastic Front and Rear Panels / Chassis Sandblasting and Black Outdoor Powder Coating
Wall panelFire-rated B2 Level 64EPS Foam Composite Wall Panels
Proof panelFire-rated B2 Level 64EPS Foam Composite Wall Panels
Floor15 mm Ecological Board + 3 mm Anti-slip and Wear-resistant Flooring Leather

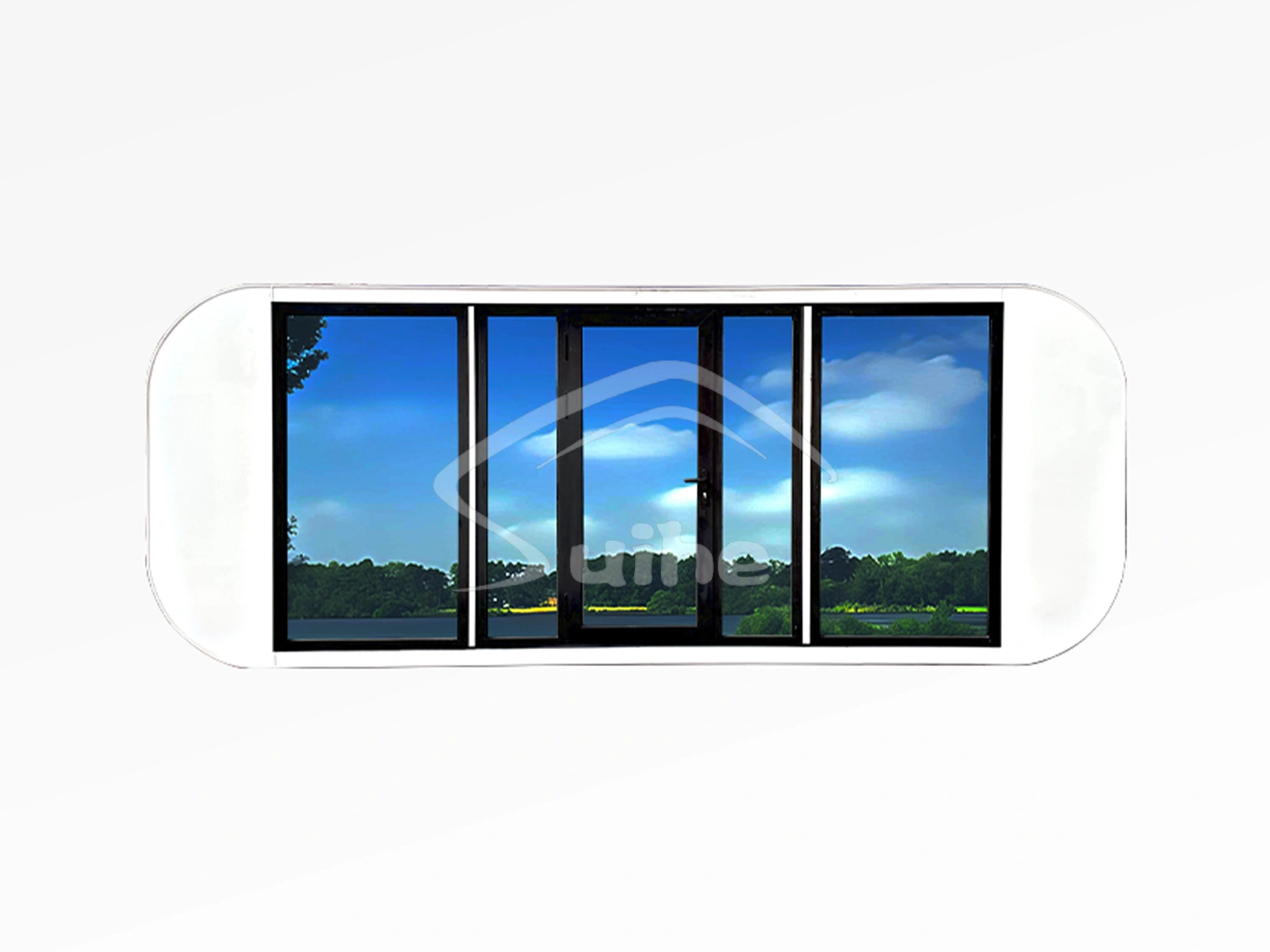

Doors and WindowsWhite Bridge-cut Aluminum Outward-opening Windows / Bridge-cut Aluminum Double-opening Doors

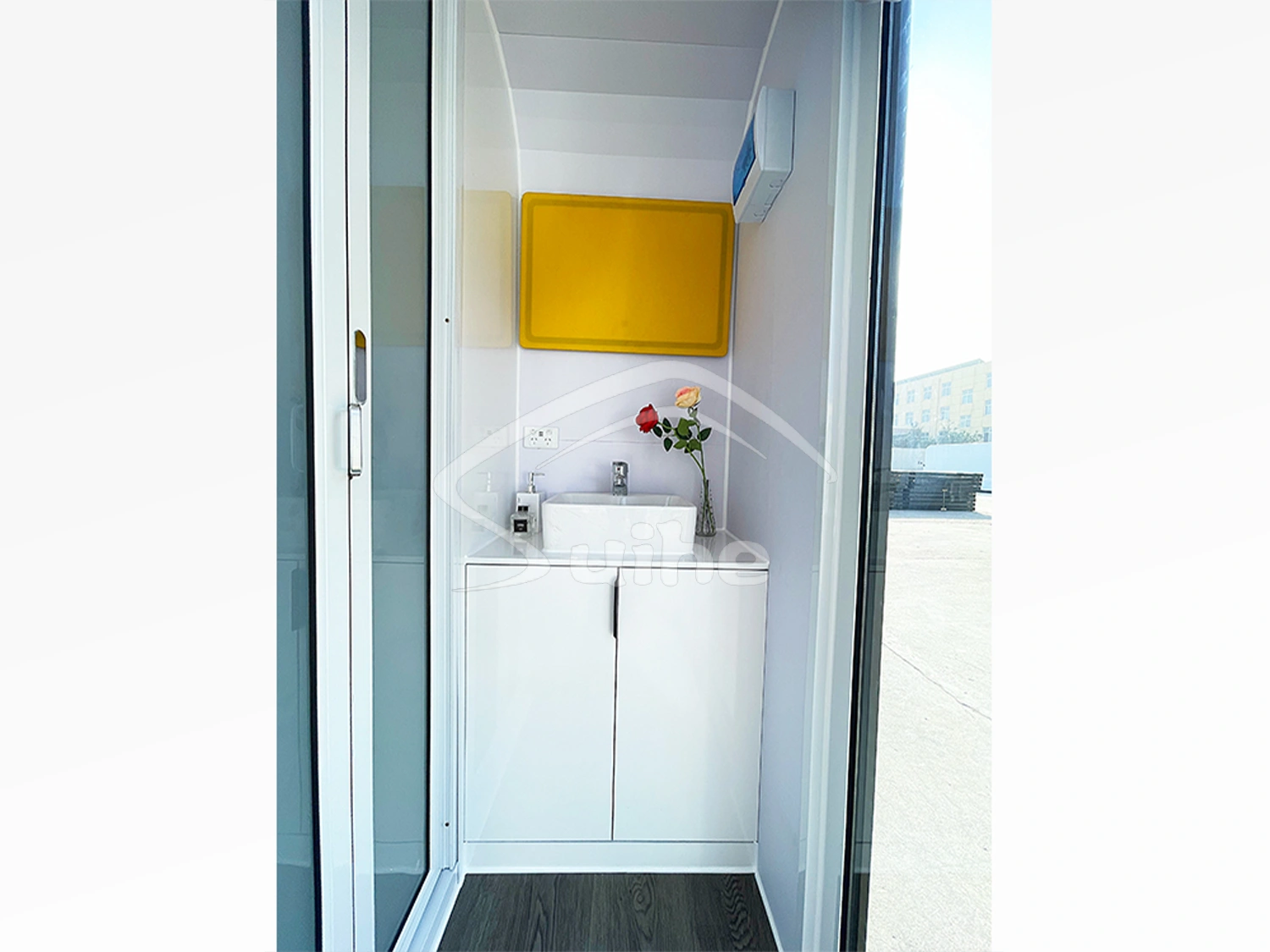

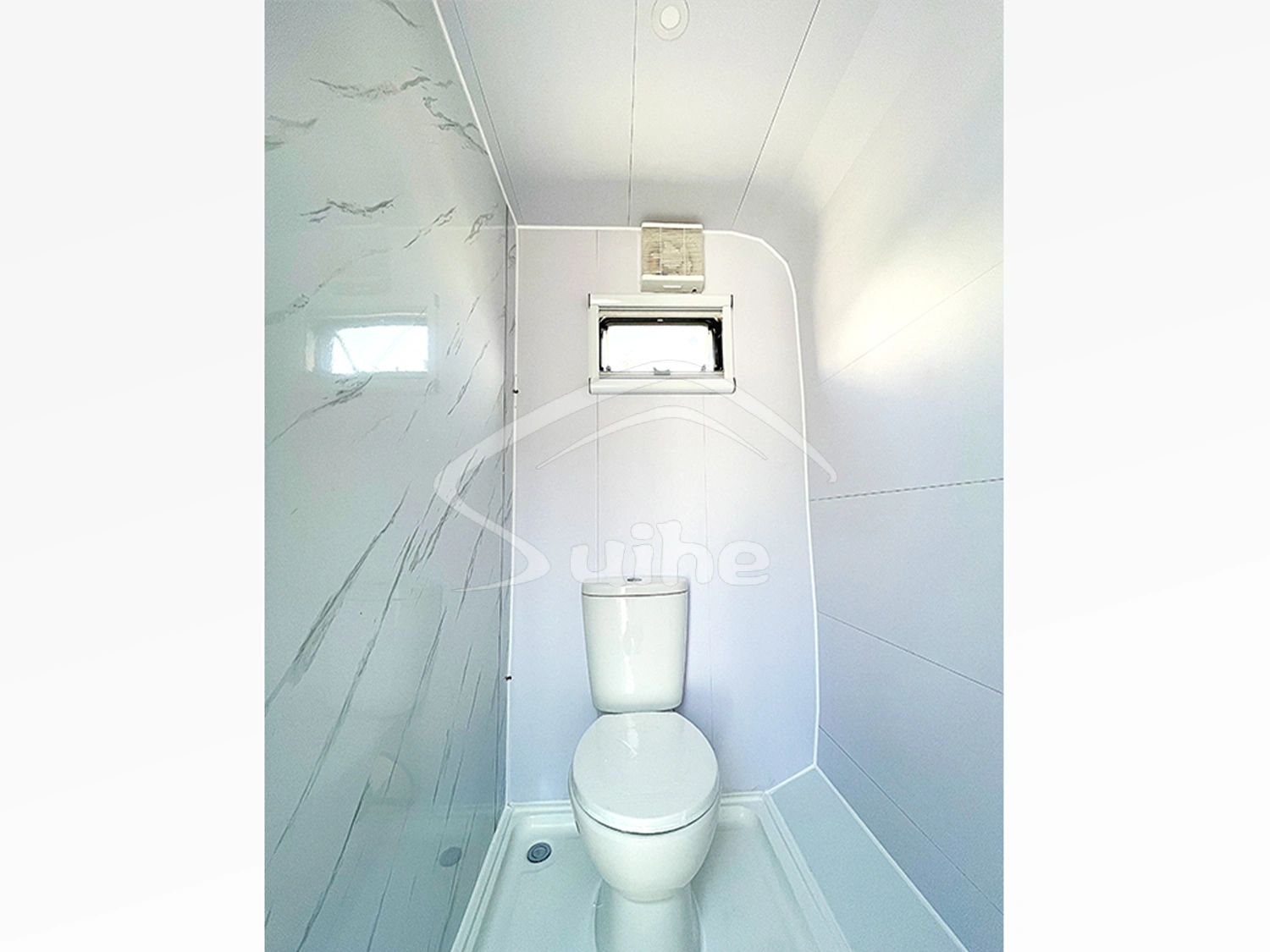

BathroomVentilation fan / Toilet / Wash basin / Mirror / Shower / Shower partition / Floor drain / Aluminum alloy bathroom folding door (with aluminum alloy edge)

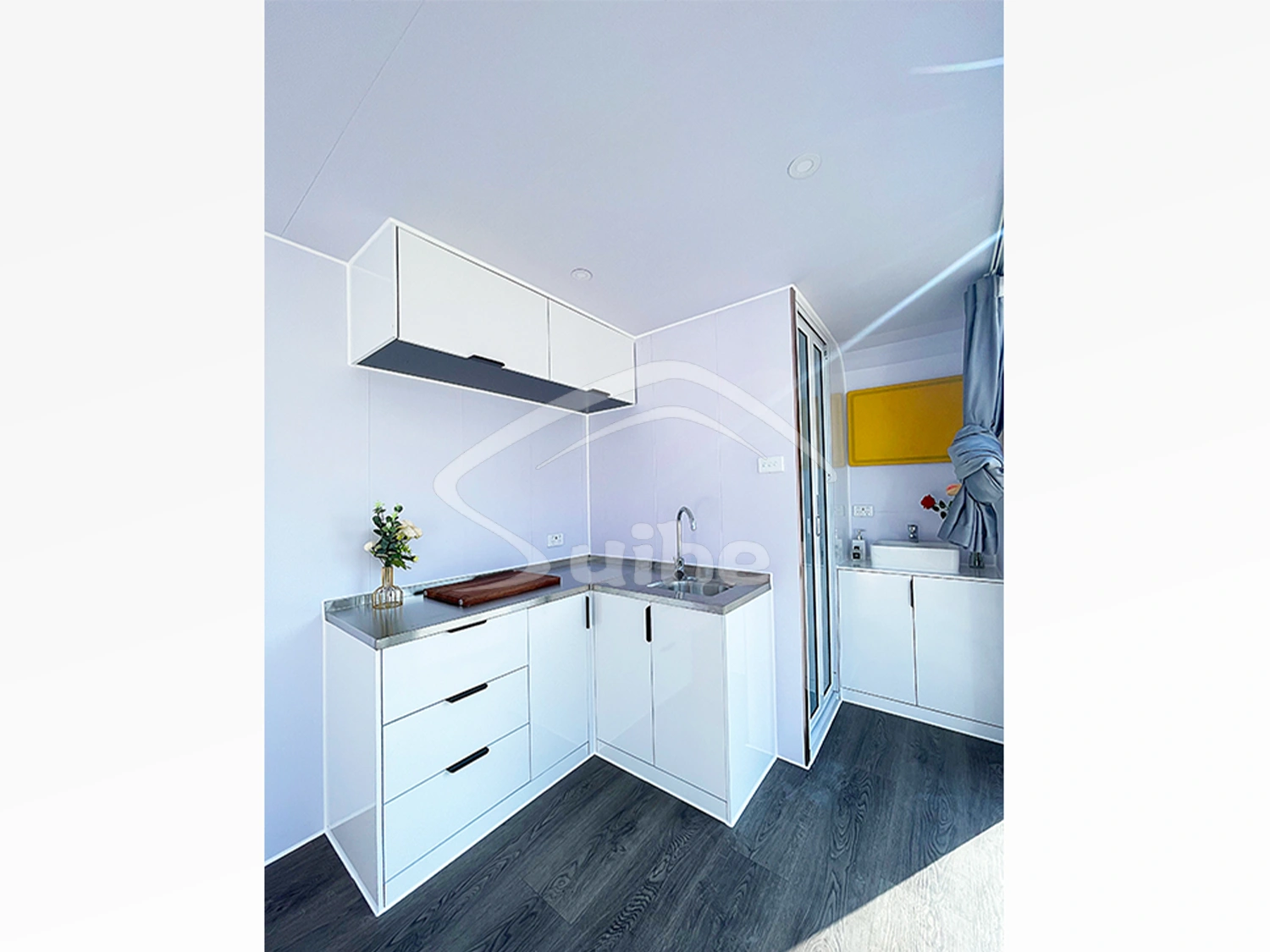

FurnitureL-shaped combination cabinet (with vegetable basin) / Hanging cabinet / Bathroom cabinet
Water Supply And DrainageHot and cold water 1/2" / Drain Φ40 / Toilet drain Φ125
Power DistributionCircuit breaker / Leakage protection / Long shadowless lamp / Wide pressure downlight / Switch / Socket / Waterproof socket
AttachmentBase leg / Packing wheel
Fire ResistanceA1 / B2 (optional)
Part Number0402000017
ItemSpecification
Circuit Breaker2P32A
Distribution BoxDistribution Box
Aviation SocketAviation Socket、32A
Junction BoxJunction Box
SwitchSwitch
SocketSocket
Ventilation FanVentilation Fan
Wide Pressure DownlightWide pressure, Opening diameter 70mm、Round, cold white light
Broken Bridge Aluminum DoorsBroken bridge aluminum doors, 2185 * 4410, Black, Double hollow tempered glass
Aluminum Alloy Folding DoorAluminum alloy folding door, White, With wrapped edge
Light Weight High Strength External Opening WindowLight weight high strength external opening window, W500 * H450, Black, Double hollow tempered glass, Screen window
Light Weight High Strength External Opening WindowLight weight high strength external opening window, W700 * H400, Black, Double hollow tempered glass, Screen window
Ceramic ToiletCeramic toilet
Wash Basin6 # Basin, Matching cabinet, Mirror
Shower FaucetShower Faucet
Shower BaseFan shower bottom basin / Matching floor drain
Hot And Cold Water Inlet Pipes20 feed pipe,joint Specification 20 * 1/2
Drain Pipe40 / 32 Drain pipe
Pressure BarPressure bar
Low FaucetLow faucet
S-shaped sewer pipeS-shaped sewer pipe
